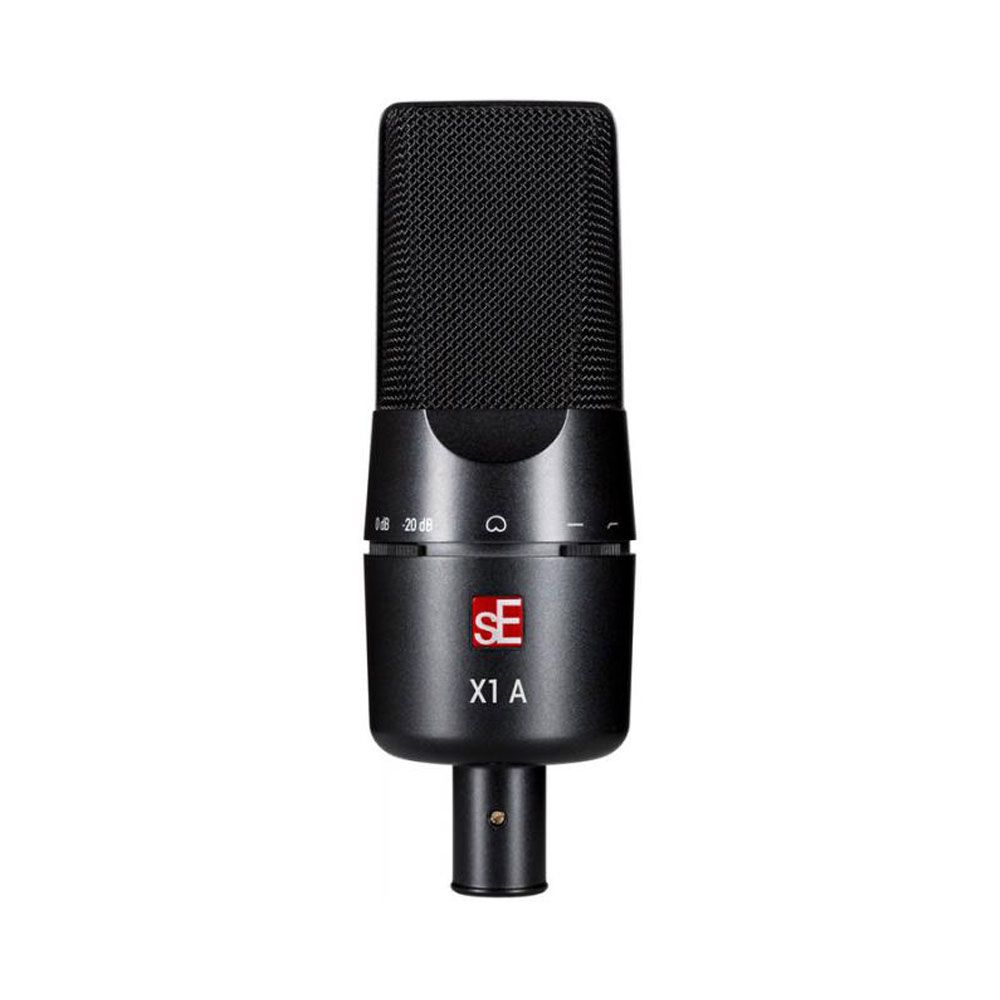

Product description

ALL-METAL HOUSING & PREMIUM FINISH

Unlike the cheaply constructed bodies of some other "entry-level" microphones, the X1 A's all-metal
chassis provides efficient rejection of any electrical interference and noise – and the high-quality
finish ensures a great look for years to come.
INTEGRATED WINDSCREEN
Eliminates the need for an external pop filter, and provides an extra layer of safety and security for
the all-important capsule.
COMPLETELY NEW ACOUSTIC DESIGN
The X1 A's new condenser capsule design is a work of art, delivering stellar sonic performance on
any source with incredible speed, accuracy, and well-balanced frequency response.
The electronics have also undergone a complete overhaul, and exhibit better specifications and
sound – on and off the test bench – than any other microphone in its class.
ATTENUATION & LOW CUT SWITCHES
The -20 dB pad switch on the left provides extended dynamic range, enabling a wide range of
applications and close-mic techniques for even the loudest instruments…think super-heavy electric
guitars, fortissimo brass instruments, and heavy-footed kick drums.
On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and
compensates for excessive bass with close-mic techniques (proximity effect).
GOLD-PLATED XLR CONNECTOR
Ensures loss-free, reliable signal connection for years and years and years and…

SPECIFICATIONS
Capsule Type: 2/3" Permanently-Biased Condenser
Directional Pattern: Cardioid

Frequency range: 20 Hz – 20 kHz

Impedance: <50 Ohms

Sensitivity: 20 mV/Pa (-34 dB)

Max SPL: 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz)

Signal to Noise Ratio: 78 dB(A)

Equivalent Noise Level: 16 dB(A)

Dynamic Range: 114 / 134 dB (0 / 20 dB pad)

Low Cut Filter: 100 Hz, 6 dB/oct, switchable

Attenuation Pad: 20 dB, switchable

Connectivity: 3-pin male XLR

Power requirement: 48V phantom according to IEC 61938

Recommended Load Impedance: >1K Ohms

Current Consumption: 4.0 mA
