Description

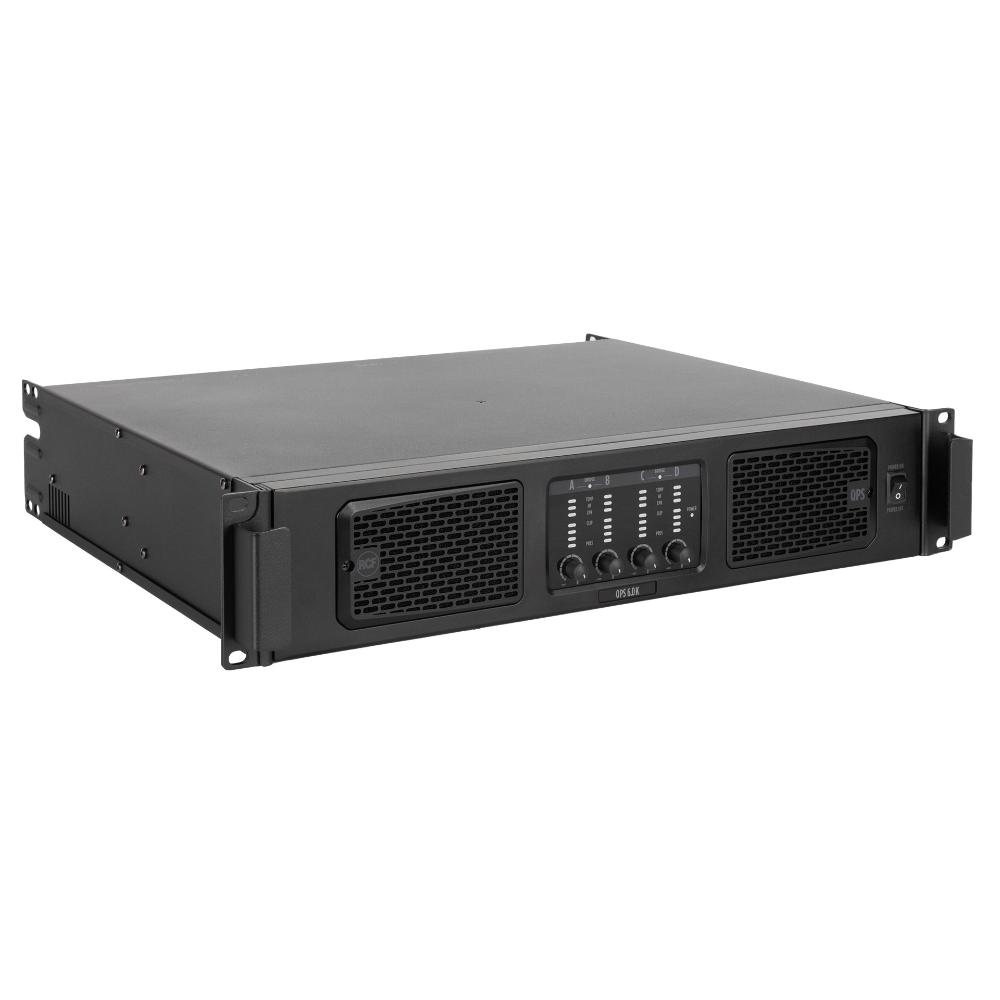

QPS Series is a range of four channel professional amplifiers that combines high-quality performance and reliability with the latest power amplification technologies. This high-value design offers, in compact 2-rack unit space, the sound quality and the durability of class HD amplifiers with the innovation of the latest power devices available. QPS 6.0K is a 4-channel power amplifier that delivers up to 4 x 1,500 W @ 2 Ohms. It features independent gain control, signal/clip and faults indicators, channels A and C XLR output link, parallel/bridge modes, and speakON output connectors. Moreover, it is protected against shorts and open circuits. Thanks to its high-efficiency heat sinks and variable speed fans, QPS 6.0K can withstand the most extreme heat conditions ensuring reliability.

• 4 x 1,500 W class HD power amplifier
• Fast response and low distortion
• Stereo, parallel and bridge modes
• Comprehensive protection circuits
• Variable speed cooling
• Signal, clip, fault led indicators
• XLR inputs and speakON outputs
• Limiter on each channel
• 20 ÷ 20000 Hz frequency range

HD Designed Driving Power

Our HD amplifier technology features a very efficient power output section with a design focused on musicality, maintaining a natural and clear sound at all frequencies, with smooth highs and a tight, high impact low end. The power supply rails continuously track the input signal for remarkable signal purity while preserving the high efficiency of the Class-D design. QPS amplifiers are bridgeable and maintain high reliability with complex loads as low as 2 Ohms nominal.

Remarkable Audio Performance

With a very high signal-to-noise ratio, QPS amplifiers also boast a very low total harmonic distortion, making it perfect for highly demanding music applications hence delivering perfect vocal intelligibility.

Self-protecting Architecture

QPS amplifiers implement several safety strategies protecting both the amplifier and the sound system, including an effective peak limiting protection for the transducers. The temperature-controlled continuous variable speed double-fan system (front to back), combined with the high-efficiency heat sinks, allows the amplifier to maintain a safe,  working temperature no matter the environmental temperature or the power output. The circuit is protected from overheating and short circuits, also including protections against infrasonic DC and Very High Frequency (VHF) peaks from non-musical signals that could damage transducers.

Specifications

Amplifier Specifications

Amplifier Class

Hd

Output Power

4 X 1500 W @ 2 Ohm
4 X 1300 W @ 4 Ohm
4 X 700 W @ 8 Ohm
2 X 3000 W @ 4 Ohm (Bridge)
2 X 2600 W @ 8 Ohm (Bridge)

Frequency Response (-3db)

20 Hz ÷ 20000 Hz

Snr Analog Inputs (“A” Weighted)

>110 Db

Crosstalk

<70 Db

Distortion (Thd+N) @ 1 Khz Nominal Power

<0.05 %

Input Section

Total Number Of Inputs

4

Balanced

4

Mono

4

Line Inputs

4

Line Connectors

Xlr

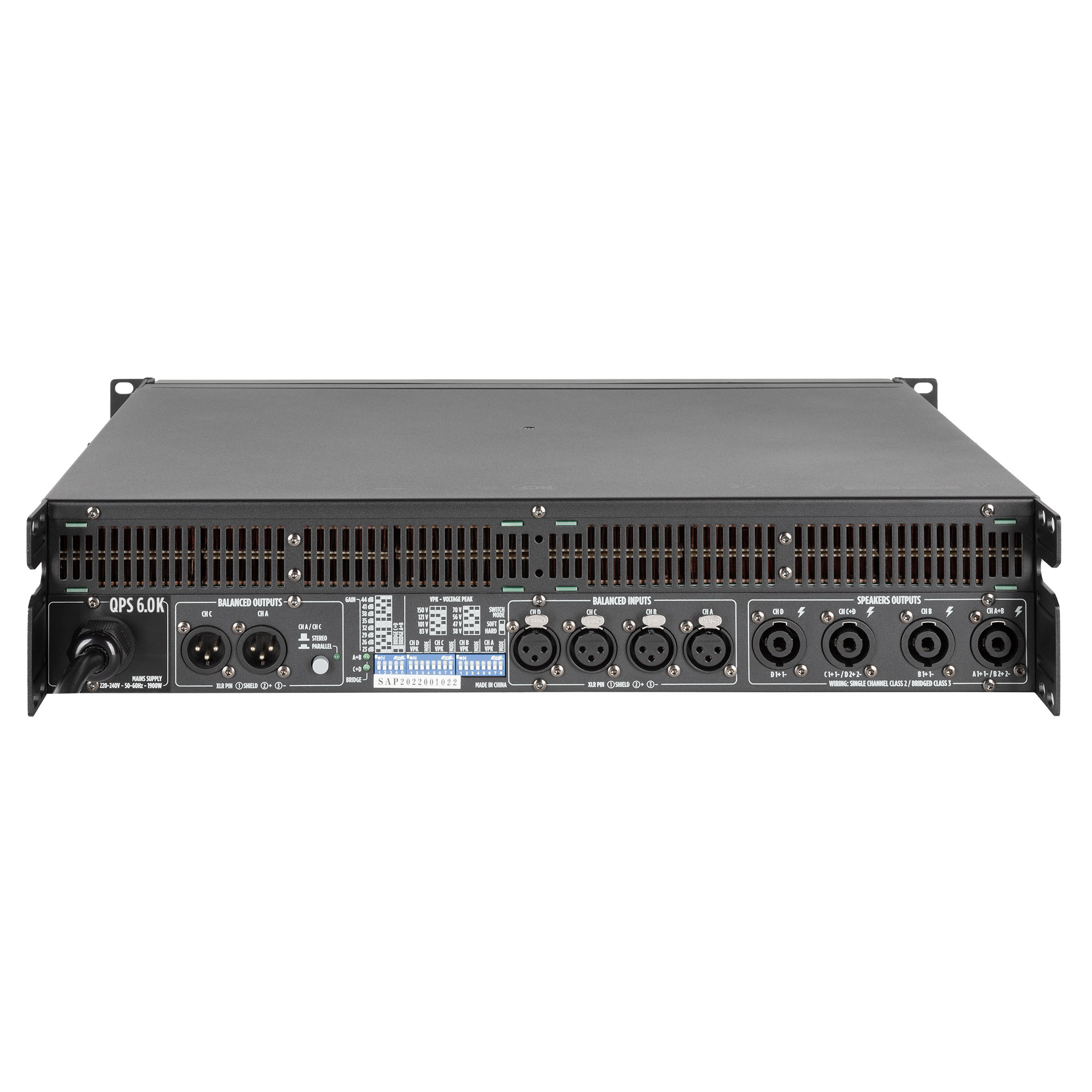

Output Section

Signal Output Number

2

Signal Output Connectors

Xlr

Power Output Connectors

Speakon

Configuration And Control

Configuration

Dip Switch, Front Panel

Protections

Cooling

Forced

Short Circuit

Yes

Thermal

Yes

Dc

Yes

Fuses

Yes

Vhf (Very High Frequencies)

Yes

Power Requirement

Operating Voltage

220-240/115 V~ 50/60hz

Power Consumption (Max)

1400 W

Standard Compliance

Safety Agency

Ce Compliant

Physical Specifications

Cabinet/Case Material

Metal

Handles

Metal Handles Included In The Front Panel

Color

Black – Ral 9005

Rack Mounting

19″, 2u

Size

Height

88 Mm / 3.46 Inches

Width

483 Mm / 19.02 Inches

Depth

399 Mm / 15.71 Inches

Weight

13.7 Kg / 30.2 Lbs

Shipping Information

Package Height

150 Mm / 5.91 Inches

Package Width

572 Mm / 22.52 Inches

Package Depth

570 Mm / 22.44 Inches

Package Weight

15 Kg / 33.07 Lbs
