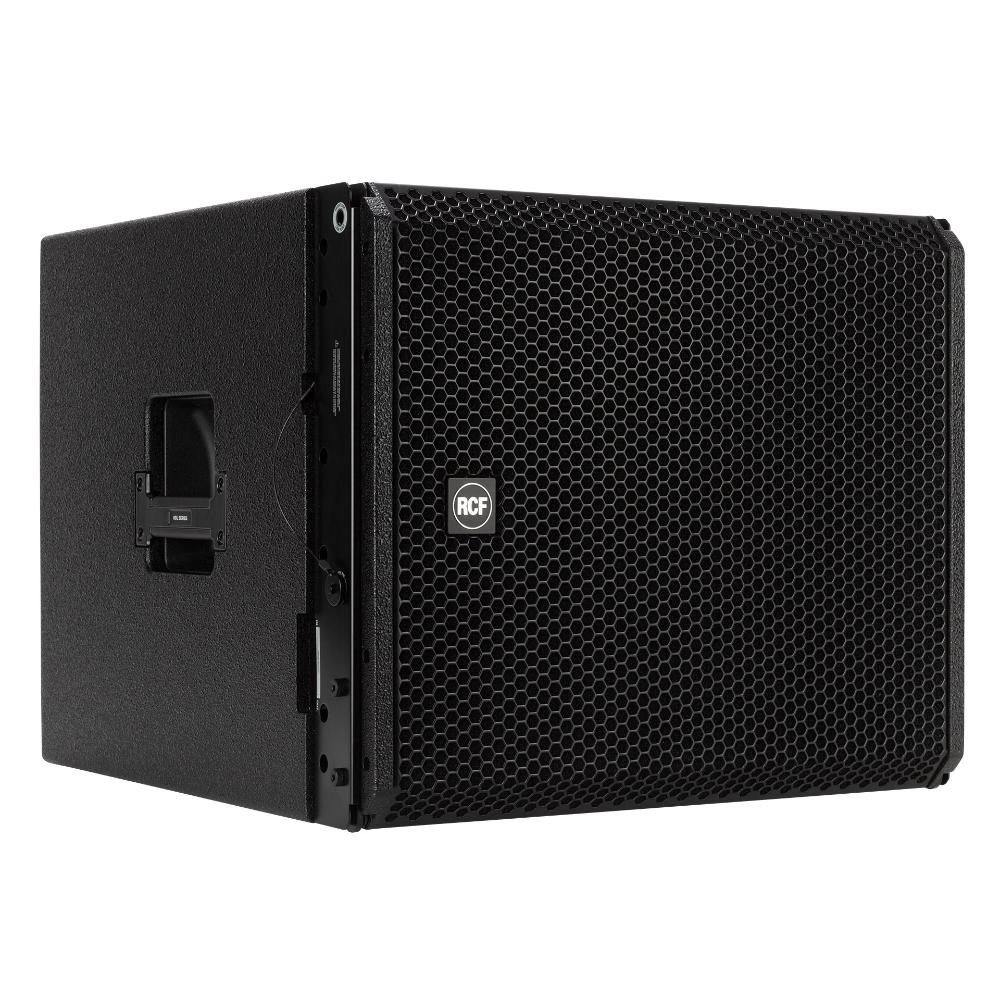

Product Description

The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system. It features one 4.0” voice coil, 15” neodymium woofer to handle 135 dB SPL Max from 40 Hz to 140 Hz with the maximum linearity and low distortion. The built-in 3200 watts class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. Due to its compatibility with RDNet – remote monitoring and control, the HDL 36-AS is part of the professional HDL System.

• 135 dB Max SPL
• 3200W Class-D Amplifier
• 40-140 Hz frequency response
• RDNet Networked Management

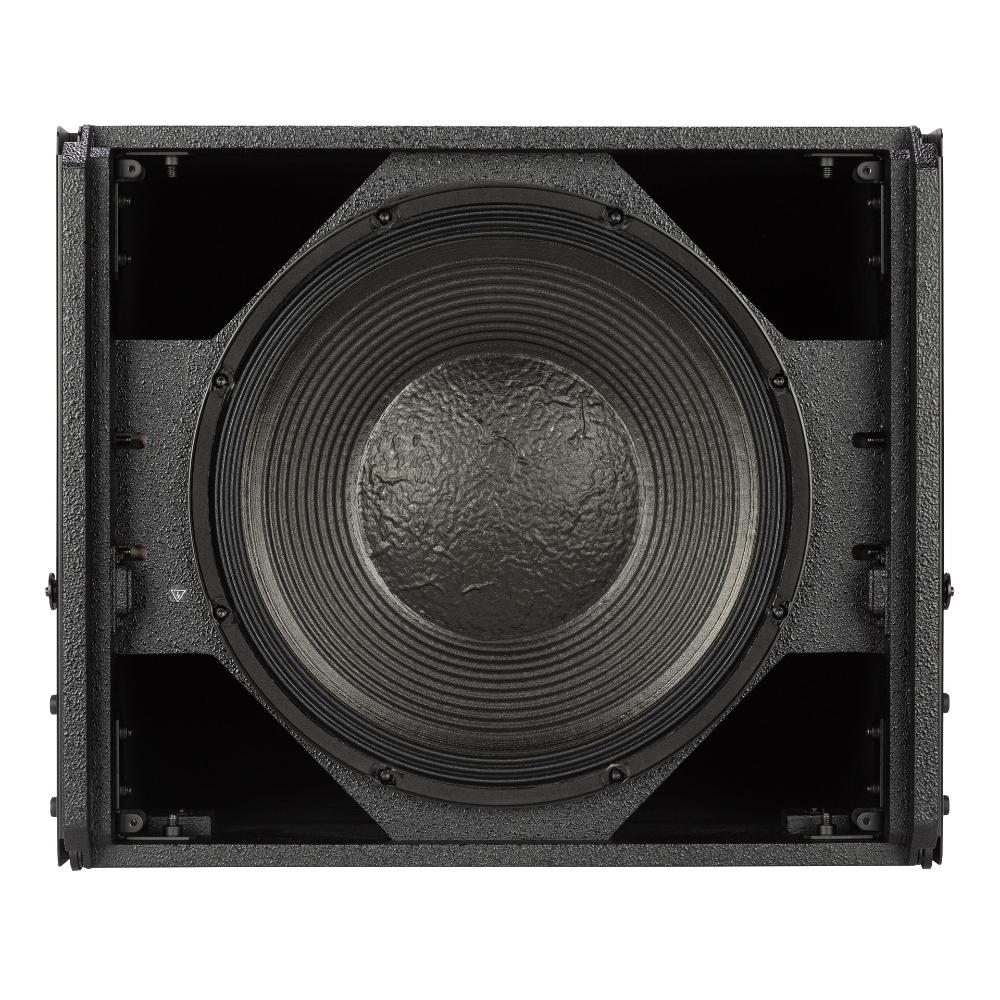

• 15” Neodymium Woofer, 4.0” voice coil

RCF RDNet

Networked control and much more

RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

READ MORE

Legendary woofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, smaller dimensions compared to the competitors, self-powered design, RDNet remote control, cardioid configuration options and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience.

READ MORE

Powerful class D amplifiers

RCF’s Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

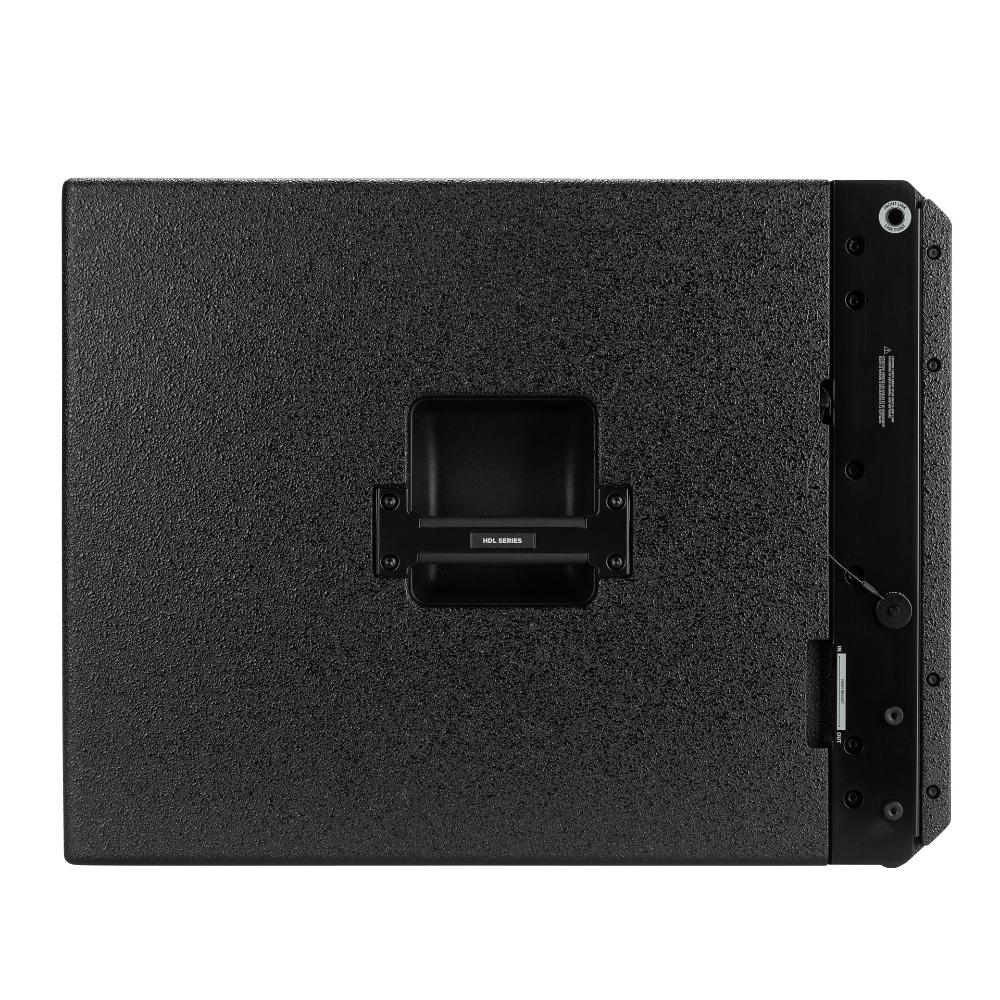

Cabinet and mechanics

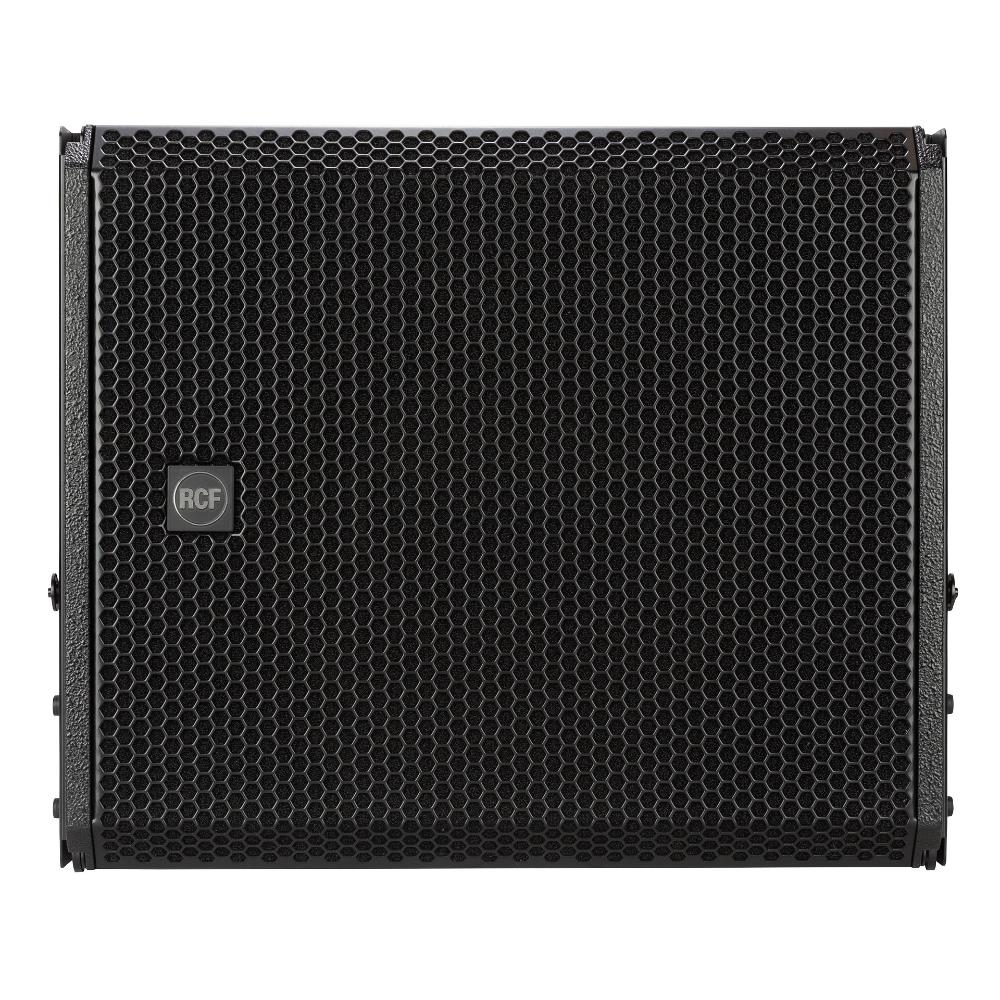

The hardware is designed for an easy and fast setup, completely compatible with the HDL 28-A rigging. The heavy-duty front grille is powder coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust. For weatherproof capabilities, a rain cover is available.

Specifications

Acoustical Specifications

Frequency Response

40 Hz ÷ 140 Hz

Max Spl @ 1m

135 Db

Transducers

Woofer

1 X 15” Neo, 4.0” V.C

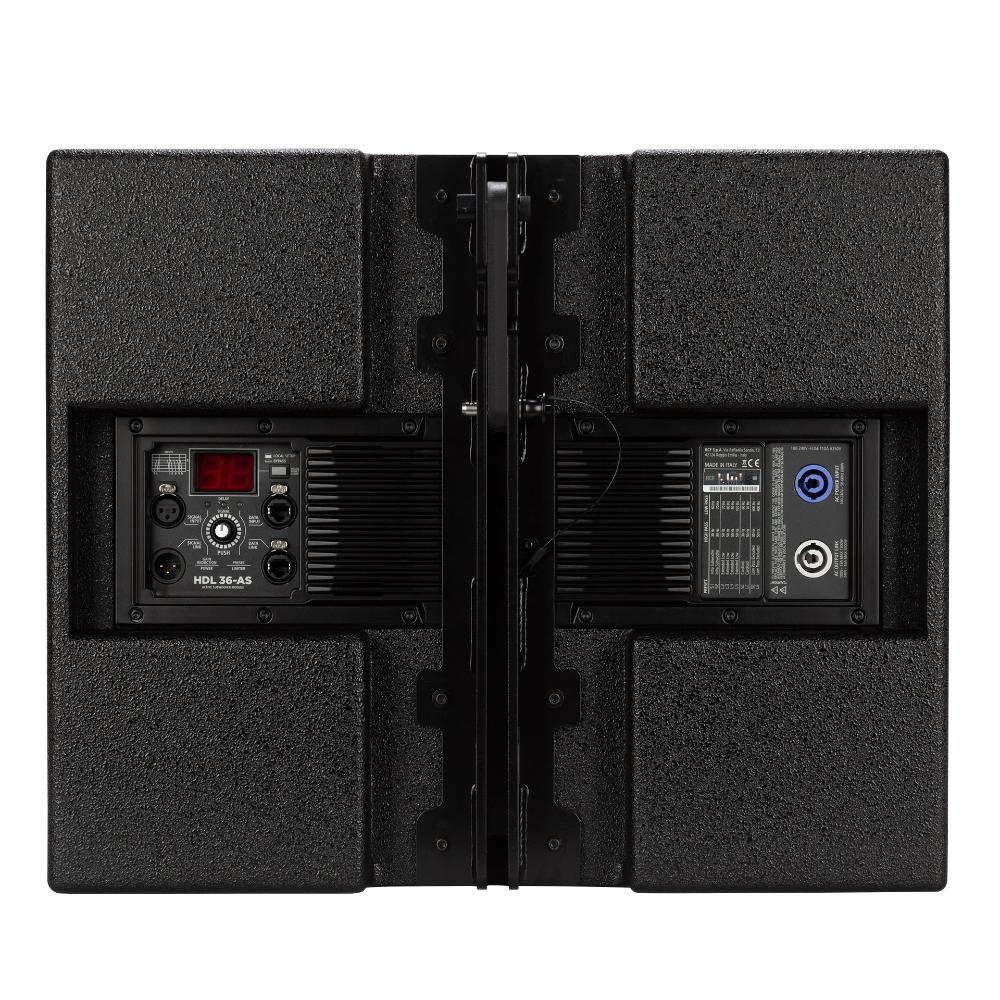

Input/Output Section

Input Signal

Bal/Unbal

Input Connectors

Xlr, Rdnet Ethercon

Output Connectors

Xlr, Rdnet Ethercon

Input Sensitivity

+4 Dbu

Processor Section

Protections

Thermal, Rms

Limiter

Soft Limiter

Controls

Volume, Preset Selection, Rdnet On Board

Rdnet

Yes

Power Section

Total Power

3200 W Peak, 1600 W Rms

Low Frequencies

3200 W Peak, 1600 W Rms

Cooling

Convection

Connections

Powercon In/Out

Standard Compliance

Safety Agency

Ce Compliant

Physical Specifications

Cabinet/Case Material

Baltic Birch Plywood

Hardware

Array Fittings
1 X M20

Handles

2 Side

Grille

Steel

Color

Black, White – Ral 9003

Size

Height

467 Mm / 18.39 Inches

Width

555 Mm / 21.85 Inches

Depth

593 Mm / 23.35 Inches

Weight

37 Kg / 81.57 Lbs

Shipping Information

Package Height

500 Mm / 19.69 Inches

Package Width

570 Mm / 22.44 Inches

Package Depth

610 Mm / 24.02 Inches

Package Weight

40 Kg / 88.18 Lbs
